General concepts

The Litrepl tool identifies code and result sections within a text document. It processes the code by sending it to the appropriate interpreters and populates the result sections with their responses. The interpreters remain active in the background, ready to handle new inputs.

Litrepl supports subsets of Markdown and LaTeX formatting in order to recognize the sections. Some aspects of the recognized grammars, such as section labels, could be configured.

Basic Execution

Litrepl searches for verbatim code sections followed by zero or more result sections. In Markdown documents, the Python code is any triple-quoted section with a pre-configured label such as python. The result is any triple-quoted result section. In LaTeX documents, sections are marked with \begin{...}\end{...} environments correspondingly.

The primary command for evaluating formatted documents is litrepl eval-sections. Consider a markdown document file.md:

``` python
print('Hello Markdown!')
```
``` result
```

You pass it to Litrepl using:

$ cat file.md | litrepl eval-sections > result.md

The result.md will have all sections filled in correctly.

``` python
print('Hello Markdown!')
```
``` result
Hello Markdown!
```

Similarly, in a LaTeX document, we format code and result sections as follows:

\begin{python}
print('Hello LaTeX!')
\end{python}

\begin{result}
Hello LaTeX!
\end{result}
  • LaTeX documents require a preamble introducing python/result environments to the TeX processor. For more information, see Formatting LaTeX documents.

By default, Litrepl tried to guess the format of the input document. Use the --filetype=(latex|markdown) option to set the format explicitly:

$ cat doc.md | litrepl --filetype=markdown eval-sections
$ cat doc.tex | litrepl --filetype=latex eval-sections
  • The main Vim command for code section evaluation is :LEval. By default, it executes the section at the cursor. To execute all sections in a document, use :LEval all.

Selecting Sections for Execution

By default, litrepl eval-sections evaluates all sections in a document. To evaluate only specific sections, the range argument should be specified. The overall syntax is litrepl eval-sections [RANGE], where RANGE can be:

  • N: Represents a specific code section to evaluate, with the following possible formats:
  • A number starting from 0.
  • $ symbol, indicating the last section.
  • L:C, referring to the line and column position. Litrepl calculates the section number based on this position.
  • N..N: Represents a range of sections, determined using the rules mentioned above.

Some examples:

$ litrepl eval-sections '0'       # First section in a document
$ litrepl eval-sections '3..$'    # Sections from fourth section (zero based) to the last one
$ litrepl eval-sections '34:1..$' # Sections starting from line 34 column 1
  • The Vim command :LEval accepts similar syntax and also recognizes specific keywords all, above, and below. These keywords allow you to evaluate all sections, only those above the cursor, or just the ones below the cursor, respectively.

Managing Interpreter Sessions

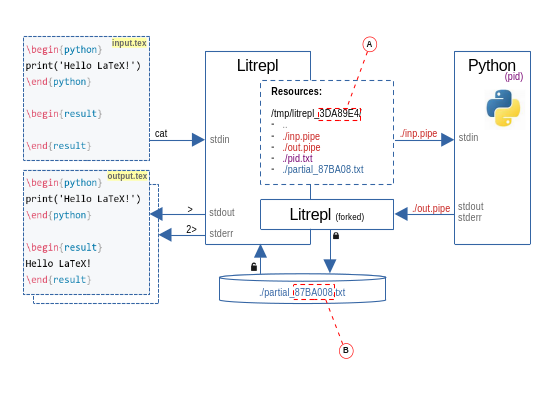

Each interpreter session uses an auxiliary directory where Litrepl stores filesystem pipes and other runtime data.

By default, the auxiliary directory path is derived from the working directory name (for Vim, this defaults to the directory of the current file).

This behavior can be configured by: * Setting the working directory with LITREPL_WORKDIR environment variable or --workdir=DIR command-line argument (this may also affect the current directory of the interpreters), or * Explicitly setting the auxiliary directory with LITREPL_<CLASS>_AUXDIR environment variable or --<class>-auxdir=DIR command-line argument, where <class> stands for either python, ai or sh.

The commands litrepl start CLASS, litrepl stop [CLASS], and litrepl restart [CLASS] are used to manage interpreter sessions. They accept the interpreter type to operate on or (for some commands) the keyword all to apply the command to all interpreters. Add the --<class>-interpteter=CMDLINE to adjust the command line to run, but be careful - Litrepl adds more arguments to configure prompts and verbosity to some interpreters, notably to the pythons.

$ litrepl --python-interpreter=ipython start python
$ litrepl --sh-interpreter=/opt/bin/mybash start sh
$ litrepl restart all
$ litrepl stop
  • The equivalent Vim commands are :LStart CLASS, :LStop [CLASS], and :LRestart [CLASS]. For the corresponding Vim configuration variables, see the reference section below.

The litrepl status [CLASS] command queries the information about the currently running interpreters. The command reveals the process PID and the command-line arguments. For stopped interpreters, the last exit codes are also listed. Specifying CLASS prints the status for this class of interpreters only.

$ litrepl status
# Format:
# CLASS  PID      EXITCODE  CMD
python   3900919  -         python3 -m IPython --config=/tmp/litrepl_1000_a2732d/python/litrepl_ipython_config.py --colors=NoColor -i
ai       3904696  -         aicli --readline-prompt=
  • The corresponding Vim command is :LStatus. No CLASS argument is currently supported.

Asynchronous Processing

Litrepl can generate an output document before the interpreter has finished processing. If the evaluation takes longer than a timeout, Litrepl leaves a marker, enabling it to continue from where it was stopped during future runs. The --timeout=SEC[,SEC] option allows you to set timeouts. The first number specifies the initial execution timeout in seconds, while the optional second number sets the timeout for subsequent attempts. By default, both timeouts are set to infinity.

For instance, executing litrepl --timeout=3.5 eval-sections on the corresponding program yields:

``` python
from tqdm import tqdm
from time import sleep
for i in tqdm(range(10)):
  sleep(1)
```

``` result
 30%|███       | 3/10 [00:03<00:07,  1.00s/it]
[BG:/tmp/nix-shell.vijcH0/litrepl_1000_a2732d/python/litrepl_eval_5503542553591491252.txt]
```

Upon re-executing the document, Litrepl resumes processing from the marker. Once evaluation concludes, it removes the marker from the output section.

The command litrepl interrupt sends an interrupt signal to the interpreter, prompting it to return control sooner (with an exception).

  • The equivalent Vim commands are :LEvalAsync (defaulting to a 0.5-second timeout) and :LInterrupt.
  • The Vim plugin also provides the :LEvalMon command, which facilitates continuous code evaluation with no delay. Interrupting this with Ctrl+C will make Litrepl return control to the editor, leaving the evaluation ongoing in the background.

Attaching Interpreter Sessions

The command litrepl repl [CLASS] where CLASS specifies interpreter class: python (the default) ai or sh, attaches to interpreter sessions. For this command to work, socat tool needs to be installed on your system. Litrepl blocks the pipes for the time of interaction so no evaluation is possible while the repl session is active. For Python and Shell interpreters, the command prompt is disabled which is a current technical limitation. Use Ctrl+D to safely detach the session. For example:

$ litrepl repl python
Opening the interpreter terminal (NO PROMPTS, USE `Ctrl+D` TO DETACH)
W = 'Hello from repl'
^D
$

Use litrepl eval-code [CLASS] to direct code straight to the interpreter, bypassing any section formatting steps. In contrast to the repl command, eval-code mode features prompt detection, allowing the tool to display the interpreter's response and detach while keeping the session open.

For example, after manually defining the W variable in the example above, it can be queried as in a typical IPython session.

$ echo 'W' | litrepl eval-code
'Hello from repl'

The eval-code command can be utilized for batch processing and managing sessions, in a manner similar to how the expect tool is used.

  • The equivalent Vim commands are :LRepl [CLASS] or :LTerm [CLASS]. Both commands open Vim terminal window.

Experimental AI Features

Litrepl experimentally supports Aicli terminal allowing users to query external language models. In order to try it, install the interpreter and use ai as the name for code sections. For low-speed models it might be convenient to use :LEvalMon command to monitor the text generation in real time.

``` ai
/model gpt4all:"./_models/Meta-Llama-3-8B-Instruct.Q4_0.gguf"
Hi chat! What is your name?
```

``` result
I'm LLaMA, a large language model trained by Meta AI. I'm here to help answer
any questions you might have and provide information on a wide range of topics.
How can I assist you today?
```

All Aicli /-commands like the /model command above are passed as-is to the interpreter. The /ask command is added automatically at the of each section, so make sure that ai secions have self-contained questions.

As a pre-processing step, Litrepl can paste text from other sections of the document in place of special reference markers. The markers have the following format:

  • >>RX<<, where X is a number - references a section number X (starting from zero).
  • ^^RX^^, where X is a number - references the section X times above the current one.
  • vvRXvv, where X is a number - references the section X times below the current one.
``` ai
AI, what do you think the following text means?

^^R1^^
```

``` result
Another interesting piece of text!
This is an example of a chatbot introduction or "hello message." It appears to
be written in a friendly, approachable tone, with the goal of establishing a
connection with users.
```
